20W/30W Static Fiber Laser Marking Machine

Fiber laser marking is a technique which uses computer-controlled laser beam to leave permanent mark on the surface of various kinds of object. The working  principle of fiber laser marking machine is to use light amplication to cause  chemical effect or burn part of the material to mark letters, symbols, bar codes,  and other graphics on an object.

Advantages

1. Can mark both metallic and nonmetallic material, especially those material  with high hardness, high melting point or brittle material.

2. High processing speeds, low operation cost, constant high quality and  durability of the results, high flexibility in automation. Laser marking is a  perfect choice for mass production.

3. Laser marking is non contact type of marking so it doesn’t produce stress on  the materials. It will not alter the physical properties of the materials  processed.

4. Laser is clean and safe process as it is chemical-proof, water-proof, oil, grease &  fuel proof.

5. As the laser beam spot size (after focusing) is small, the heat-affected zone is  much smaller, thus allowing it to achieve fine processing that other  conventional methods cannot.

6. Laser Marking is a flexible process as one can mark texts, alphanumeric, logos,  bar codes, graphics, images, 2D data matrix code, etc.

7. It is a user-friendly and cost effective marking solution as virtually no  consumables.

8. Laser marking enhances the aesthetical & monetary value of products by  making it more attractive & eye catching.

Fiber laser marking machine is mainly  composed fiber laser, laser scanning  galvanometer and controller. The fiber  laser has the advantages of small size,  high quality beam, no maintenance and  etc. The output center wavelength of  fiber laser is 1064 nm and the life time is  around 100,000 hours. Compared with  other king of laser, fiber laser has a  longer life time.

SPECIFICATIONS

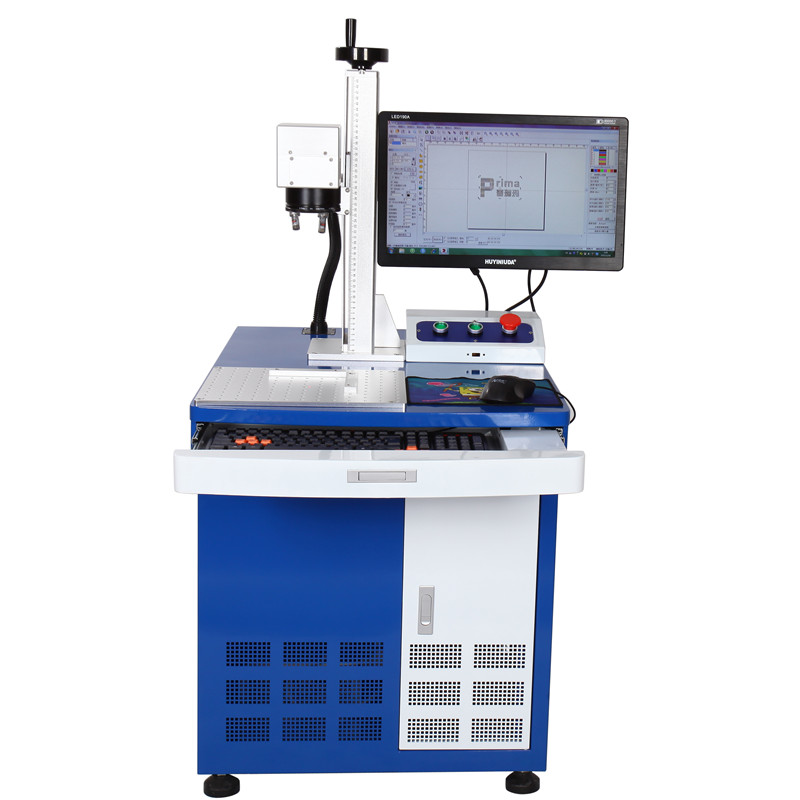

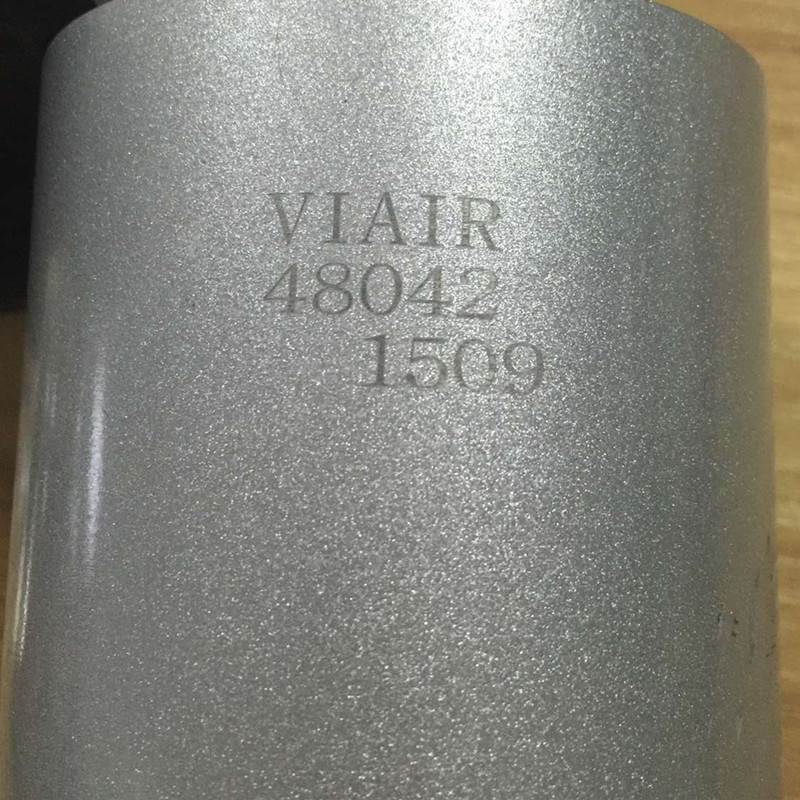

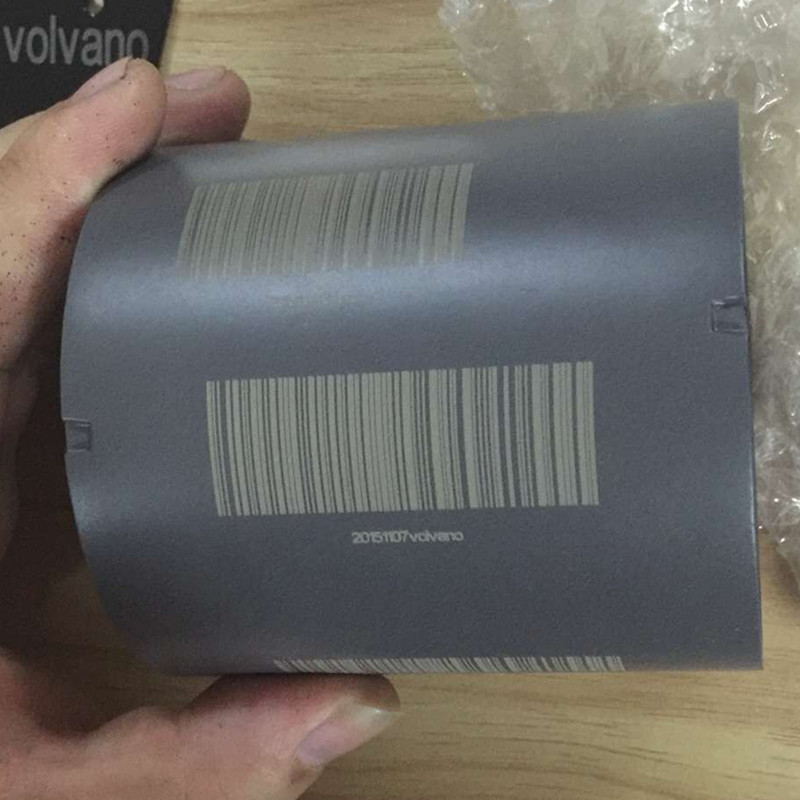

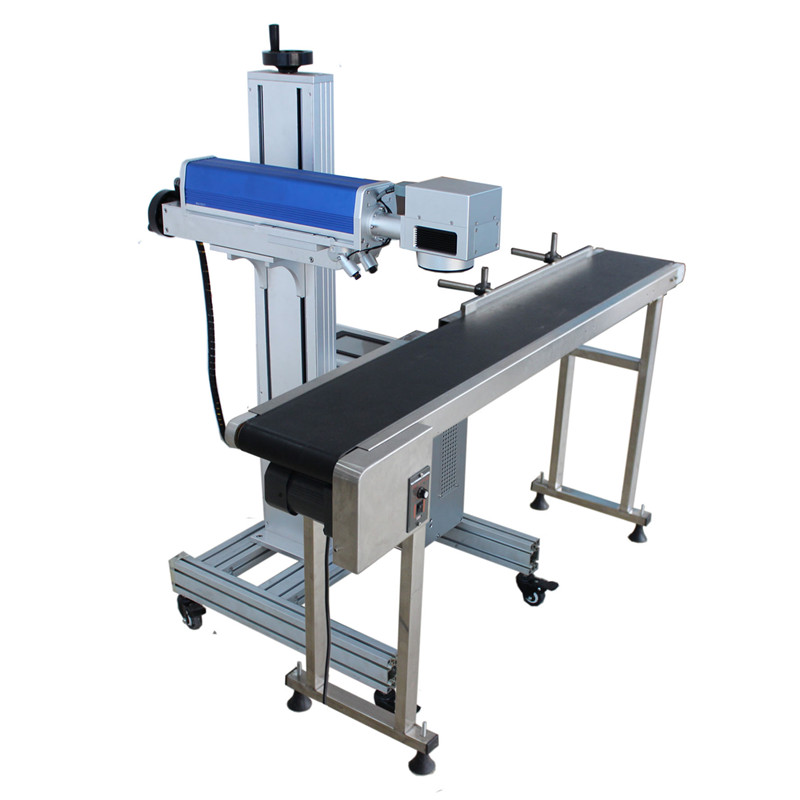

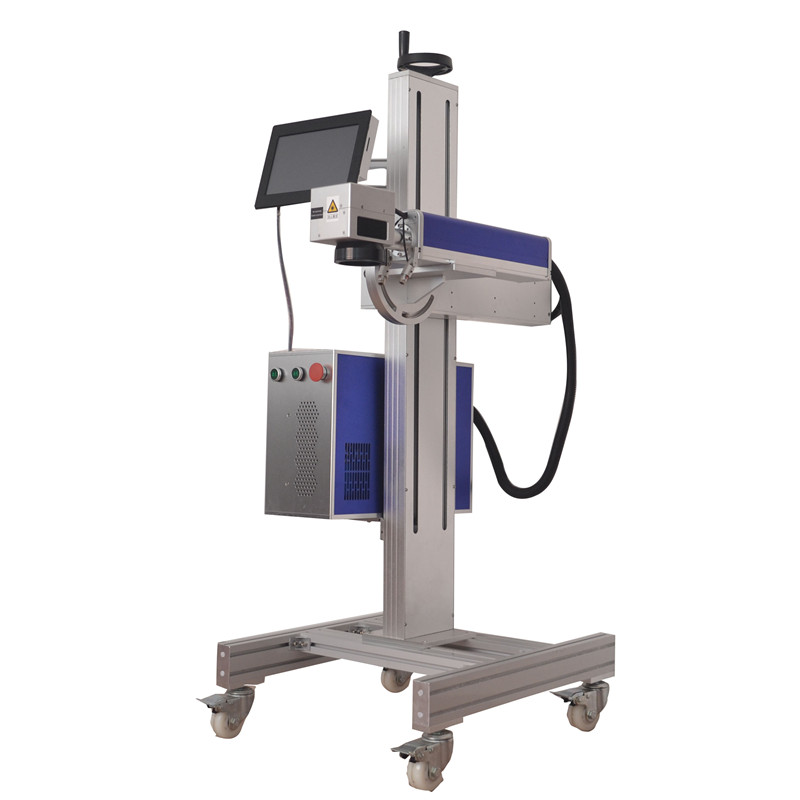

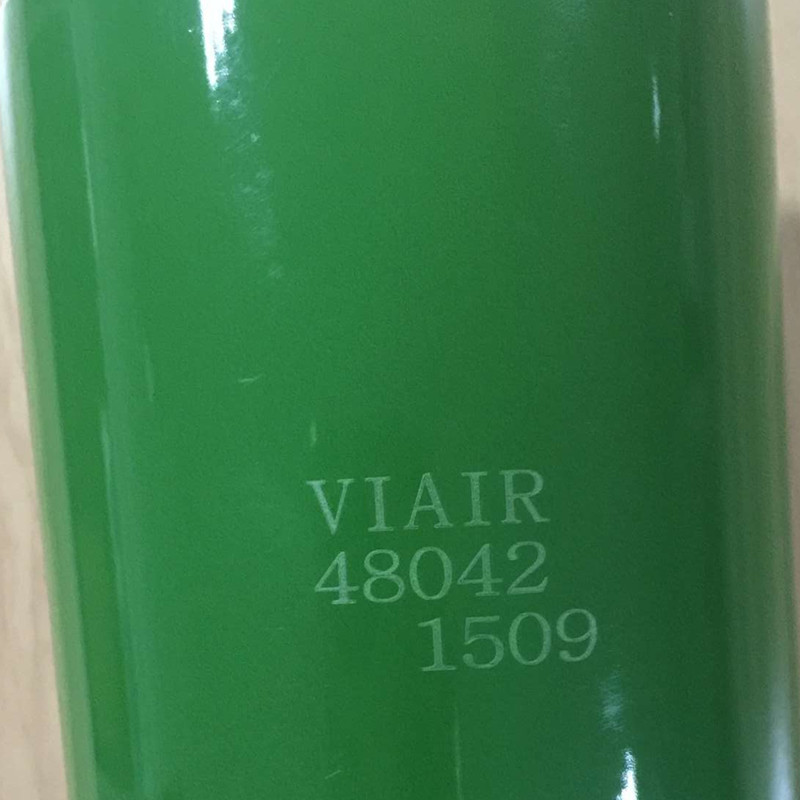

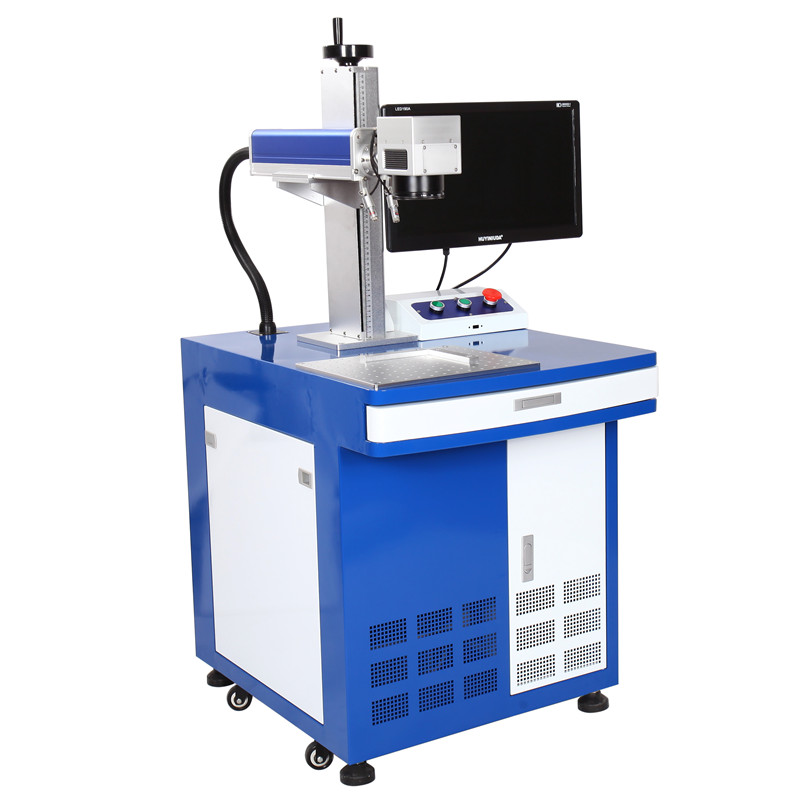

Machine and Sample Show：
