UV laser marking machine use the wavelength of 355nm ultraviolet laser, which has very small focus spot and can greatly reduce the mechanical deformation and processing heat effect of the material.UV laser is mainly used for ultra-fine marking, especially suitable for food, pharmaceutical, micropores punching, high-speed cutting of glass materials and the complex graphic cutting of silicon wafers.

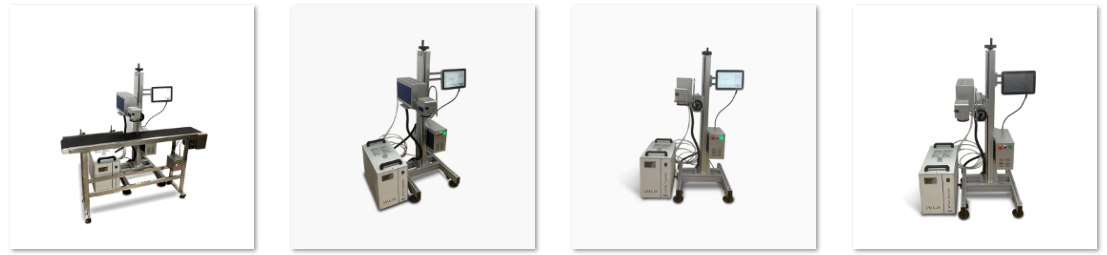

SPECIFICATIONS OF IPS-LUV3 F
| MODEL | IPS-LUV3 F ( 5W Fly UV Laser Marking Machine) |
| Laser power | 3W |
| Laser Gun Brand | JPT |
| Laser Wavelength | 355nm |
| Focus system | Two Red Light with accurate position |
| Scanning System | Digital Scanning Galvanometer with high seep motor |
| Indication System | Inner Red Outline Indication |
| Cooling System | External Water Cooling |
| Marking Size | 75*75mm, 150*150mm, 200*200mm, 300*300mm |
| Min Linewidth | 0.01 MM |
| Min Font Height | 0.01 MM |
| Repetition Accuracy | +-0.002 mm |
| Pulse Width | <20 ns @30KHZ |
| Pulse Repetition Rate | 10-100KHZ |
| Optical quality | <1.2 |
| Laser crystal working time | Around 20000 hours |
| Overall Power | Around 2000 watt |
| Power Supply | 220V/50-60HZ/5A/1P |
| Flying System | 10.4 inch professional fly marking system based on Android |
| Weight | 87 KG |
| File Format Support | Support file from CORELDRAW,AUTOCAD,PHOTOSHOP directly. SupportAI,PLT,PCX,DXF,BMP file. Support all fonts from windows system. Support automatic coding, serial no, batch no, real time, variable barcode and QR code and databases. |
| Language support | English,Russian, Thailand, Korea ,Arabic ,Portuguese ( Can develop all language) |
Printing sample:
