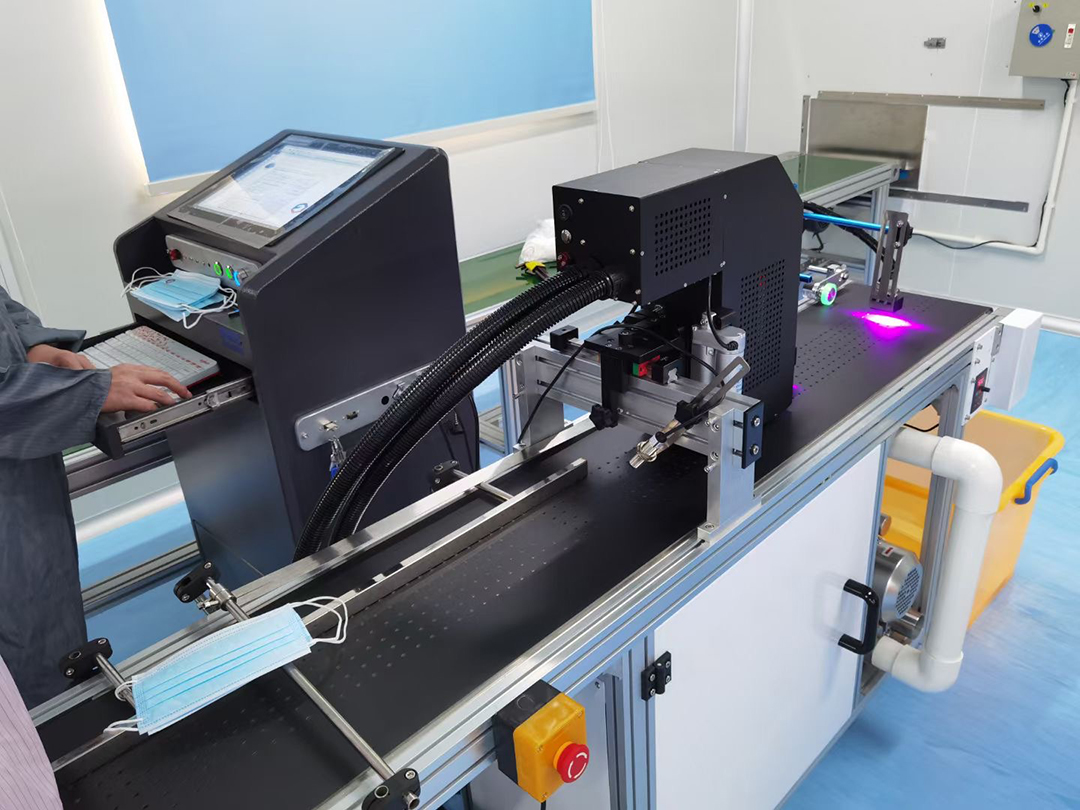

IPS-CUV33 color UV inkjet printer DOD 1-4 printhead
Add time:2021-06-29       Source:

IPS-CUV33 UV inkjet printer adopts EPSON I3200 piezoelectric printing with high resolution and high durability. The print head has excellent durability due to its high-precision processing technology, it has been optimized by the industrial printing field to achieve high-speed output and high-quality printing, and equipped with an advanced negative pressure system, IPS-CUV33 has a stable, continuous Ink flow system, routine maintenance is very easy. IPS-CUV33 is the best solution for color logo printing and a quick and easier solution to replace silk screen printing, widely used in face masks, nail polish, food packaging, customized products and many other products.


CMYK Full Color Printing
EPSON I3200 head can achieve CMYK color by single head directly.
uses 4 different color inks (Cyan, Magenta, Yellow and Black) blended together to achieve the full color.
White color machine use cycle and mixing system, he ink does not settle easily.


Negative Pressure System
Equipped with advanced negative pressure system.
Stabilize the air pressure inside the ink supply system.
Ensure the continuous ink flow.
Less maintenance, longer downtime.


High resolution
1440*300 DPI
720*300 DPI
360*300 DPI


Simple usability
Industrial computer with Windows operation system.
Easy software and anybody can understand in short time.
High color restoration, the printing color comes from the primary color directly.



Speed Capability360*300DPI up to 88 meter/min
720*300DPI up to 44meter/min
1440*300DPI up to 22meter/min
Font Height1 head--33mm, 2 heads--66mm, 3 heads--99mm, 4 heads--132mm
Print distance1-5mm 2mm optimum
Printing characterAlphabet, number, Chinese character, S/N,barcode, real time, logo, graphics
Environmental protection

IP55 Painted steel/ Aluminum alloy

Printhead EPSON I3200
Printhead umbilical

Ultra flexible   Length: 3 meter
Ink type UV Ink
Printing Direction  downwards( standard) , forward ( customized )
Temperature/humidity range

0-45 °C  0%-95% RH non-condensing

Electronical requirements

AC100-240V 50/60HZ

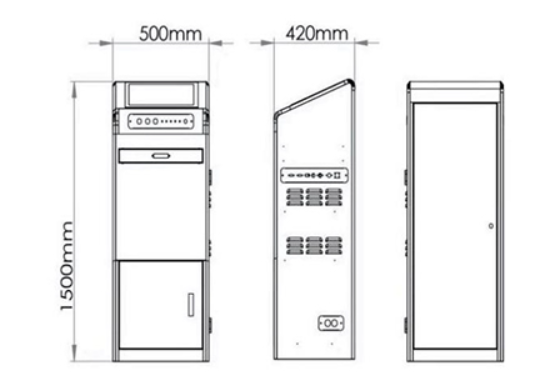

Cabinet Size 150*50*42 CM
