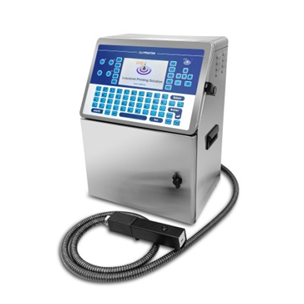

PRIMA-B600 Series
Continuous Ink Jet Printer
Stable & Less Maintenance & Superior Performance
The PRIMA-B600 Series Continuous Ink Jet Printer is specifically designed tomeet high coding and printing requirementsacross a wide of substrates. There is almost no limit to the material and shape of the substrates. It is ideal for single to multiple shift applications, 24-hour uptime. The speed can reach 345 meter per minutes with 5*5 dot. The max print line is 5 for this PRIMA-B600 Series CIJ Printer.
Specifications:
| Print Direction | 360 degree printing |
| Line of Print | 1-5 lines |
| Character Height | 0.8-15mm |
Print Speed Standard Model | 5*5 single line 220 meter/min |
| 5*7 single line 180meter/min | |
| 5*7 Twiline 50meter/min | |
| 5*7 Tri-line 35meter/min | |
| 5*7 Quad-line 20meter/min | |
| 5*5 Five-line 18meter/min | |
| Display | 240*128 Bright blue backlit 6" LED Display |
| Font Matrix | 5*5/5*7/7*9/8*12/10*14/14*16/16*24/ customized font available |
| Electrical Requirements | 220V 50-60HZ 200VA |
| Temperature Range | 0℃to 50℃(32℉to 122℉) |
| Humidity Range | 10%-90%RH non-condensing |
| Size | L400*W297*H505 |
| Weight | 35KG |
| Ink color | Black, White, Red, Yellow, Green, Blue, UV (invisible) |
| Ink Type | Standard Ink and Opaque Ink |
Advanced Capabilities:
1. 1-5 lines printing, 32 dots max. Support barcode, QR code, logo and customized fonts.
2. Precise Gear Pump assures the stability of the fluid system and high print quality.
3. Top quality of printhead with ruby nozzle, can be adjusted within 360 degree.
4. Automatic Calibration adjusts jetting parameters automatically to help ensure high quality print.
5. Advanced fluid delivery systemresists ink buildup and maximizes uptime, eliminating spills and helping to ensure the correct fluids are recycled so that there is no fluid waste.
6. Automatic cleaning of printhead and fluid delivery systemduring start up and shutdown process.
7. Automatic Alarm system when the ink and solvent is below the warning line.
8. SUS304 stainless steel cabinet with IP 55 protection grade.
9. Open to work with other device by RS232 port.
10. Low consumption of consumables to save production cost.
Custom Logo/Graphics:
We have special custom-font software and support all kinds of regular and irregular fonts and graphics. Customer can use this software to make different language fonts.
Print Distance:
The distance between printhead and substrate can be from 1 mm to 40mm.
Material of Substrates:
Paper, Glass, Plastic, Steel, Aluminum, Tin plate, wood,leather and all materies.
PRIMA-B600 plus printer can print on all kinds of materials.
Shape of Substrates:
Flat, Round, Uneven, all kinds of shapes are workable.
Applications:
PRIMA-B600 Plus is widely used in food, beverage, daily chemical, pharmaceutical, hardware, electronics, construction materials, lamps, toys, packaging, printing and other industries.
PRIMA-B600 Series have sevel models, including standard Model (PRIMA-B600 Plus), High speed model, Touch screen model, DM model and Opaque Model. Please contact our sales to gee the details.

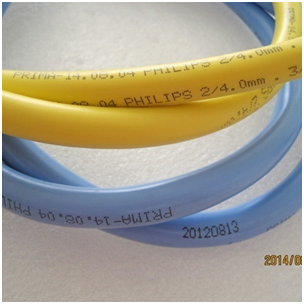

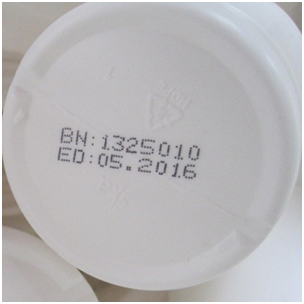

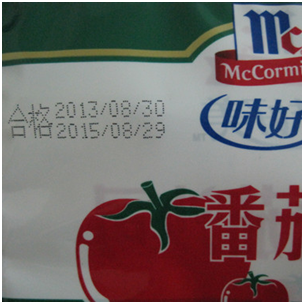

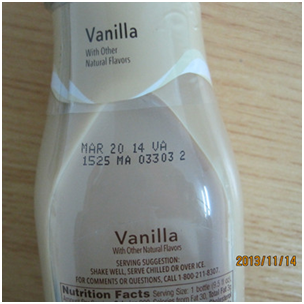

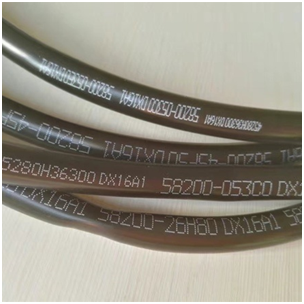

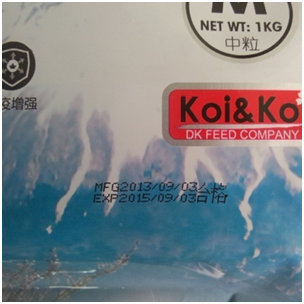

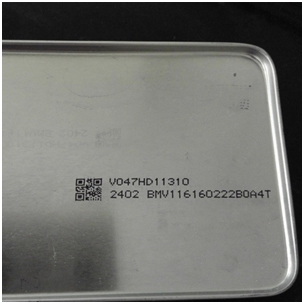

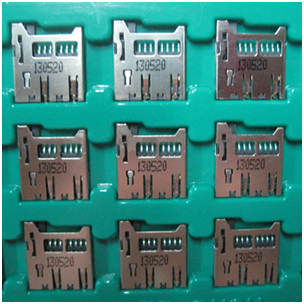

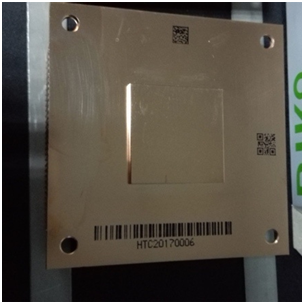

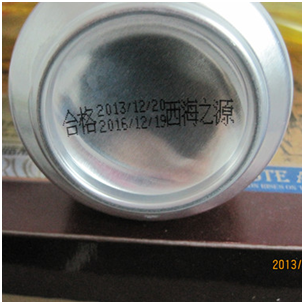

Printing quality show by PRIMA-B600 Series CIJ Printer:
